Atomizer Nozzle
UltraSonic Atomizer Nozzle
 |

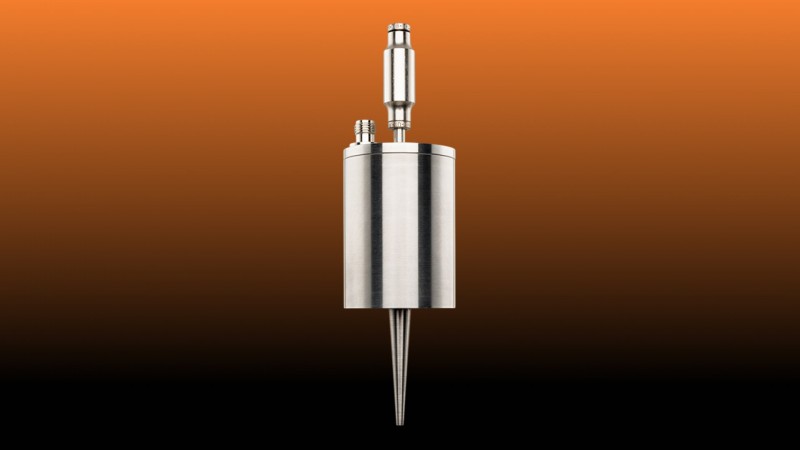

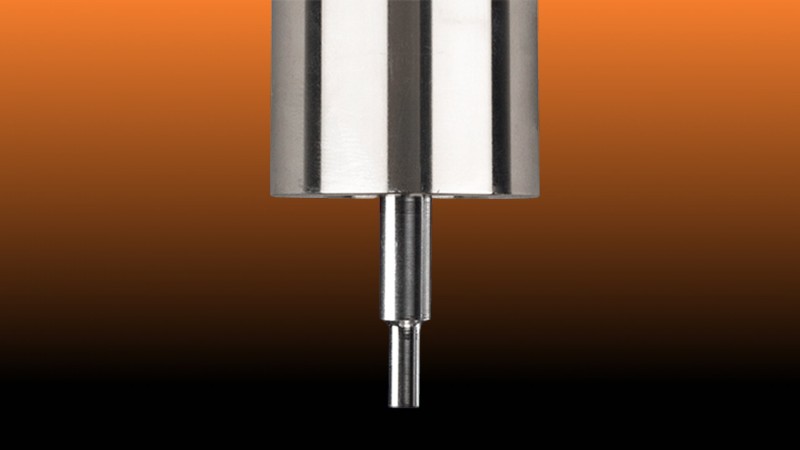

Sonaer narrow spray atomizer nozzle focus micron and sub-micron droplets onto small parts from various viscosity solutions with very little overspary. Controlled coatings are obtained from these nozzles making it easy to adapt to many applications requiring thin uniform films. The nozzles are light weight making them attractive with robotic coating systems. Nozzles are available in light weight aluminum or stainless steel case with stainless steel inner feed tube. Micro feed tubes are available for delivering micro liter volumes, available in stainless steel and PTFE fluoropolymer. Nozzles can be configured with spray shapers for pin point sprays and wide sprays giving the user more control over the coating application. For Spray Shapers click link, for Micro Feed Tubes click link.
|
||||||
|
FREQUENCY
|
TYPE 316 SS
|
TYPE 6061
|
FLOW RATE (ml/min)
|
2D DWG
|
3D DWG
|
MASS (g)
|
|
| 40kHz | NS40K50S316 | NS40K50 | 0 - 40 | NS40 | NS40.STP | 108 (AL) 165 (SS) | |
| 60 kHz | NS60K50S316 | NS60K50 | 0 - 40 | NS60 | NS60.STP | 91 (AL) 150 (SS) | |
| 130 kHz | NS130K50S316 | NS130K50 | 0 - 20 | NS130 | NS130.STP | 90 (AL) 147 (SS) | |
 |

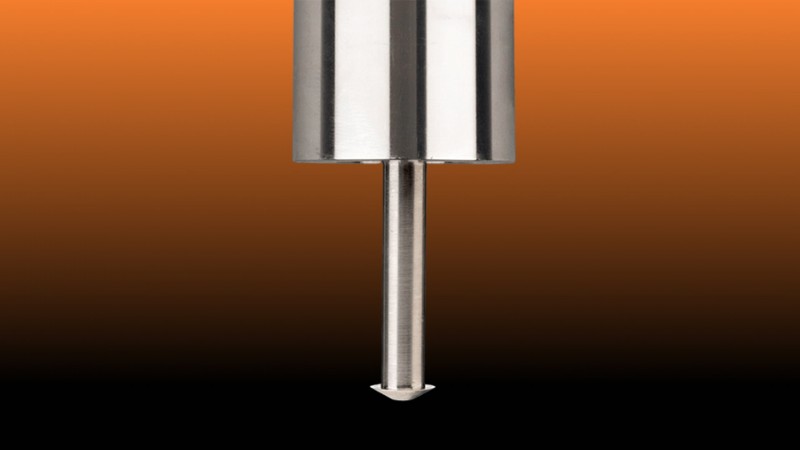

Sonaer makes a line of wide spray atomizer nozzles for dispersing droplets over a wider area than what a narrow nozzle can provide, it does this with the angle portion of the tip. As liquid rides up the tip, droplets are pulverized on an angle and pushed away from the nozzle. Altough the nozzle can operate at low flows, liquids might become unstable coming off the tip, in these cases a narrow spray nozzle should be used. These nozzles are best suited for spraying holes or areas that need full coverage. For increasing the area covered these nozzle, our Dove Tail spray attachment can be used. For Dove Tail Spray Shaper click link.
|
|||||
|
FREQUENCY
|
TYPE 316 SS
|
TYPE 6061
|
FLOW RATE (ml/min)
|
2D DWG
|
3D DWG
|
MASS (g)
|
| 20kHz | WS20K50S316 | WS20K50 | 0 - 100 | WS20 | WS20.STP | 157 (AL) 264 (SS) |
| 40kHz | WS40K50S316 | WS40K50 | 0 - 50 | WS40 | WS40.STP | 103 (AL) 161 (SS) |
| 60kHz | WS60K50S316 | WS60K50 | 0 - 40 | WS60 | WS60.STP | 92 (AL) 150 (SS) |
| 130kHz | WS130K50S316 | WS130K50 | 0 - 20 | WS130 | WS130.STP | 90 (AL) 147 (SS) |
 |

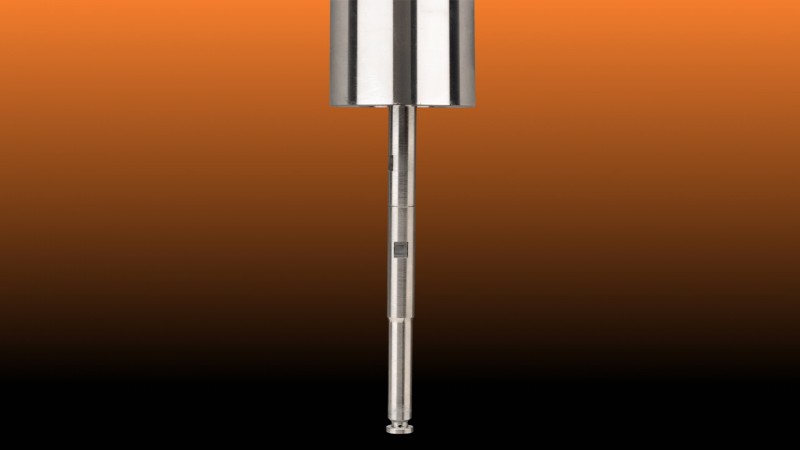

Sonaer makes a line of atomizer nozzles with an extension attached to the end. These nozzles come in both 40kHz and 60kHz frequencies and are good for depositing droplets within bores. For spraying programmed amounts, these nozzles spray forward and along the inside of counter bores and threads. Tip is removable and can be replaced when solution erodes the tip.
|
|||||
|
FREQUENCY
|
TYPE 316 SS
|
TYPE 6061
|
FLOW RATE (ml/min)
|
2D DWG
|
3D DWG
|
MASS (g)
|
| 40kHz | WS40K50ES316 | WS40K50E | 0 - 30 | WS40E | WS40E.STP | 118 (AL) 176 (SS) |
| 60kHz | WS60K50ES316 | WS60K50E | 0 - 30 | WS60E | WS60E.STP |
93 (AL) 150 (SS) |
 |

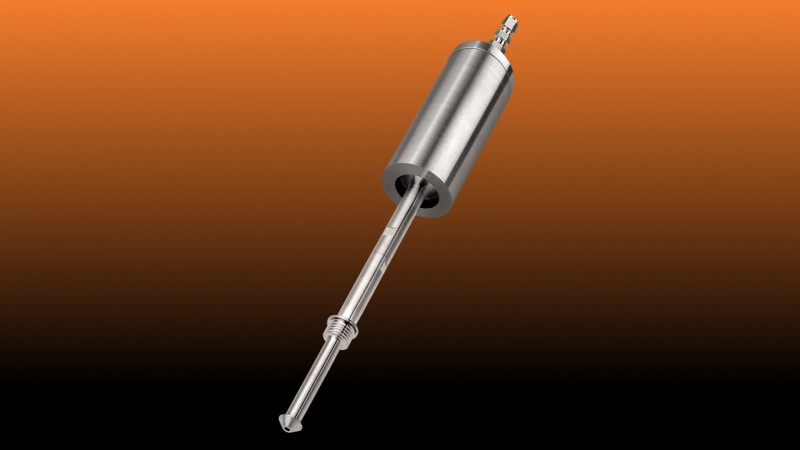

Sonaer has a line of atomizer nozzles that will operate at elevated temperatures, typically 1000 deg F. Nozzles come in a wide spray 30kHz and a narrow spray 40kHz frequency. Altough the nozzle was designed to operate at higher temperatures, they also can be used at ambient conditions. Along the shaft of the nozzle is a mounting point for a decoupling nut that adapts to vessels, pipes, tubes and other enclosures including our high temperature spray shapers. We also have designed a 40kHz nozzle with a longer extension for applications that require deeper penetration of spray droplets. All HT nozzles come with Cooling Ports click link. MANUAL
|
|||||
|
FREQUENCY
|
TYPE 316 SS
|
TYPE 6061
|
FLOW RATE (ml/min)
|
2D DWG
|
3D DWG
|
MASS (g)
|
| 30kHz | HTWS30K50S316 | HTWS30K50 | 0 - 100 | HTWS30 | HTWS30.STP | 189 (AL) 276 (SS) |
| 40kHz | HTNS40K50S316 | HTNS40K50 | 0 - 50 | HTNS40 | HTNS40.STP | 155 (AL) 261 (SS) |
| 40kHz | HTNS40K50ES316 | HTNS40K50E | 0 - 50 | HTNS40E | HTNS40E.STP | 186 (AL) 292 (SS) |
 |

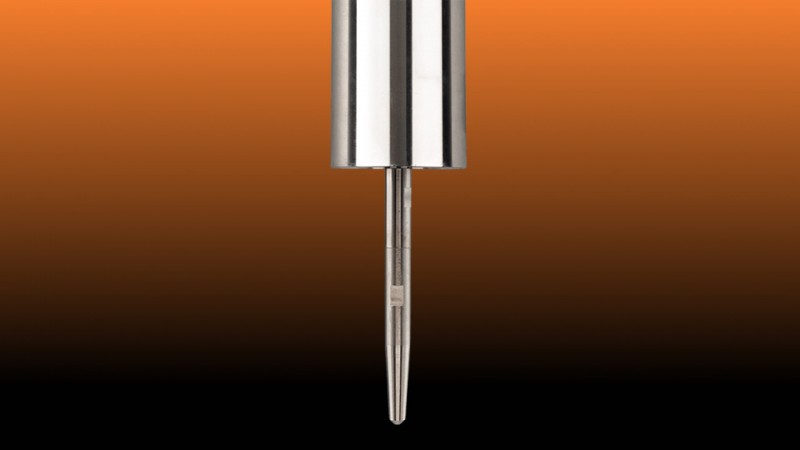

With the radial atomizer nozzle sprays come from the side of the nozzle tip. The nozzle has a small inner tube within the probe tip which leads out to small diameter holes along the side. Liquids exiting the small holes are sprayed towards the outside. This nozzle is useful for sprays that have to deposit along the inside wall of a tube and cannot fall to the bottom.
|
|||||
|
FREQUENCY
|
TYPE 316 SS
|
TYPE 6061
|
FLOW RATE (ml/min)
|
2D DWG
|
3D DWG
|
MASS (g)
|
| 40kHz | CF40K50S316 | CF40K50 | 0 - 10 | CF40 | CF40.STP | 135 (AL) 235 (SS) |
 |

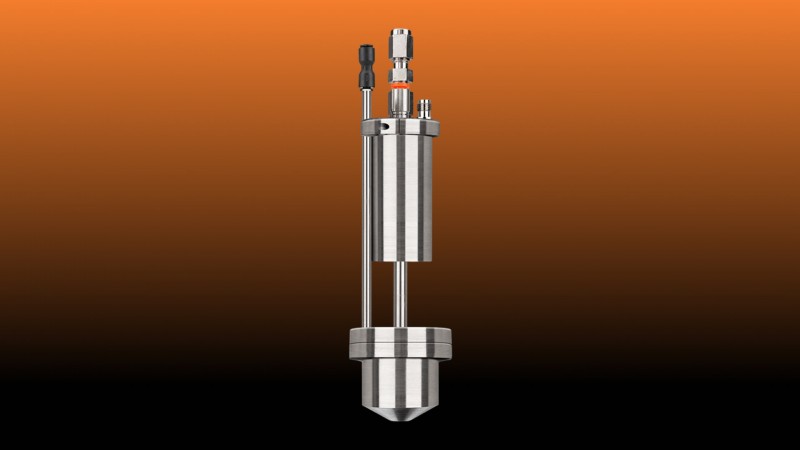

Sonaer's high temperature 40kHz atomizer nozzle with spray shapers. Nozzles are titanium alloy and 316 stainless steel construction for spraying temperatures up to 600C degrees. Nozzles come with either a pin point spray shaping attachment or our wide vortex spray shaping attachment. The pin point spray shaper can spray down to 250 micron diameters and our wide vortex spray shaper can spray droplets as wide as 100 degree angles. See our specification sheet for the spray shapers at the link provided Spray Shapers The atomizer nozzles come standard with cooling ports, gas feed line and compression fitting. Nozzles can be fitted with Micro Feed Tube for low flows if required.
|
|||||
|
FREQUENCY
|
TYPE 316 SS
|
TYPE 6061
|
FLOW RATE (ml/min)
|
2D DWG
|
3D DWG
|
MASS (g)
|
| 40kHz | PPSAHTNS40K | Not Available | 0 - 50 | PPSAHTNS40 | HTNS40PPSA.STP | 365 (SS) |
| 40kHz | WVSAHTNS40K | Not Available | 0 - 50 | WVSAHTNS40 | HTNS40WVSA.STP | 375 (SS) |
 |

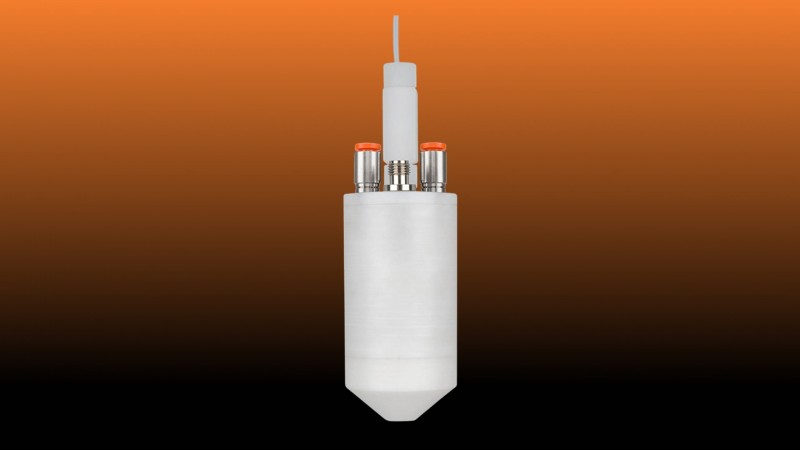

Sonaer's fluoropolymer (PEEK and PTFE) Sono Alloy atomizer nozzle (Inconel 725) for corrosive environments uses the latest advances in metallurgy for applications with aggressive solutions. Hydrofluoric acid, hydrogen peroxide, hydrochloric acid, nitric acid and other aggressive chemicals can be sprayed through this atomizer without any coatings to protect the nozzle. The nozzle comes standard with Cooling Ports and is available with fluoropolymer Spray Shapers for focusing and spreading droplets.
|
|||||
|
FREQUENCY
|
TYPE FLUOROPOLYMER
|
TYPE 6061
|
FLOW RATE (ml/min)
|
2D DWG
|
3D DWG
|
MASS (g)
|
| 60kHz | FLUORO60K | Not Available | 0 - 5 | FLUORO60K | FLUORO60.STP | 115 |
| 60kHz | PPFLUORO60K | Not Available | 0 - 5 | 145 | ||
| 60kHz | WVFLUORO60K | Not Available | 0 - 5 | WVFLUORO60.STP | 155 | |
 |

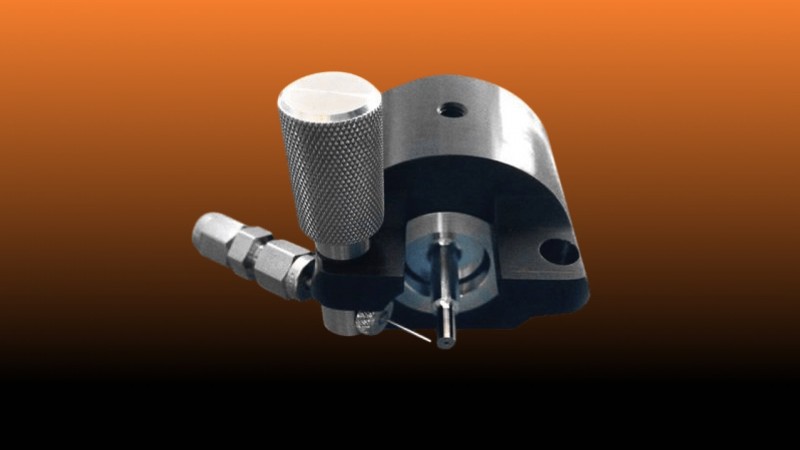

Sonaer's hypodermic delivery attachment for atomizer nozzles allows for solutions to be dispersed on the nozzle tip and focusing droplets through the center orifice with a small gas flow. Can be used for controlled deposits of liquids for coating medical devices and small objects. Attachment fits the NS series 40, 60 and 130kHz nozzles.
|
|||||
|
FREQUENCY
|
TYPE 316 SS
|
TYPE ACETAL
|
TYPE 6061
|
FLOW RATE (pl/min - ml/min)
|
DWG
|
MASS (g)
|
| For 40,60 & 130kHz | HYPOSASS | HYPOSAACETAL | HYPOSAAL | 0 - 10ml/min | HYPOSA | 34 (ACETAL) 83 (AL) 247 (SS) |
