Ultrasonic Particle Generator makes Micron and Sub-Micron Droplets

Made in the United States of America


241PGT	241PG

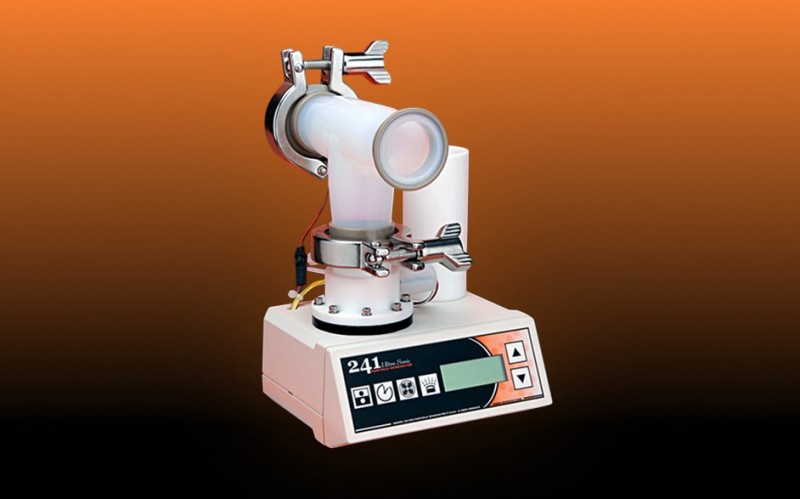

2.4 MHz model 241PGT, Particle Generator, PTFE Fluoropolymer vessel and container, PTFE Fluoropolymer seals, PFA Fluoropolymer TEE, Gold element. The 241PGT will accept all 1.5" sanitary fittings, elbows, TEEs, wyes, reducers etc. The unit is fully microprocessor based, allowing the user to program operating parameters into the unit, handling a wide variety of applications for accurate particle generation. On the front panel is a LCD display that the user can change the rate at which particles are being generated form 0 to 100% of the full output capability, in 5% increments. Built into the device is a variable 0 - 2 cfm air flow for moving particles out of the vessel where particles are being made, for special processes, like coating small parts. This air flow source and all other connections are attached with quick disconnect 304 stainless steel clamp and PTFE Fluoropolymer O-rings. This makes for easy removal of components for cleaning or adapting the device with simple connections, such as external gas supply or vacuums. In addition, the unit has an external PFA Fluoropolymer optical sensor and PTFE Fluoropolymer valve for keeping the liquid level to the correct height and preventing damage to the nebulizing element, should the unit run dry. A Fluoropolymer container and PTFE Fluoropolymer tubes are provided for holding the liquid to be atomized. This container can be changed with other liquid holding cells. The microprocessor handles all the functions of the 241PGT, including timed operation where particles can be made in preprogrammed amounts. Accessories , DRAWING, MANUAL

2.4 MHz model 241PG, Particle Generator, Fluoropolymer coated, Fluoropolymer seals. The 241PG will accept all 1.5" sanitary fittings, elbows, TEEs, wyes, reducers etc. The unit is fully microprocessor based, allowing the user to program operating parameters into the unit, handling a wide variety of applications for accurate particle generation. On the front panel is a LCD display that the user can change the rate at which particles are being generated form 0 to 100% of the full output capability, in 5% increments. Built into the device is a variable 0 - 2 cfm air flow for moving particles out of the vessel where particles are being made, for special processes, like coating small parts. This air flow source and all other connections are attached with quick disconnect 304 stainless steel clamp and Fluoropolymer O-rings. This makes for easy removal of components for cleaning or adapting the device with simple connections, such as external gas supply or vacuums. In addition, the unit has an external Fluoropolymer optical sensor and Fluoropolymer valve for keeping the liquid level to the correct height and preventing damage to the nebulizing element, should the unit run dry. A Fluoropolymer container and Fluoropolymer tubes are provided for holding the liquid to be atomized. This container can be changed with other liquid holding cells. The microprocessor handles all the functions of the 241PG, including timed operation where particles can be made in preprogrammed amounts. Accessories , DRAWING , MANUAL
