​NEW ANALYTICAL CAPABILITIES IN MATERIALS  CHARACTERIZATION

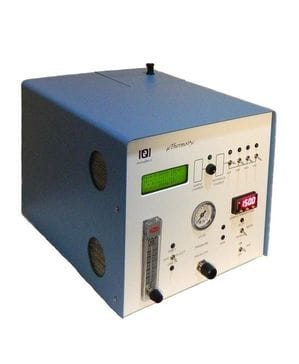

Micro-Thermo Pycnometer - µThermoPyc ™
Variable Temperature Gas (Helium) Micro Pycnometer

Product Overview

​The µThermoPyc™ is a unique, R&D oriented volumetric analyzer with versatile software design for automated runs using a PC.
In its basic implementation it allows true volume measurements of small sample sizes in the temperature range 0 - 150 C. In addition to typical true density determination at user-defined various temperatures, continuous temperature scans allows study of sample behaviour within a selected range of temperatures. Considering the small size of reference chamber (about 1 cc), small dead volume of the sample chamber (about 0.5cc), 24 bits resolution of data acquisition system, high accuracy in volume measurements and high sensitivity of pressure changes during temperature scans is achieved.

​Complex experiments can be carried out using unique approach to software design: the user composes the sequence of activities from the predefined functions (macros). Once the experiment course is defined, the template can be saved and reused later. Provisions were made to enhance the design with additional capabilities and/or interface with other analytical instruments, like GC/MS for evolved gas analysis, purge and trap devices, borescopes for visual observations, etc.

 Design features:
- Variable sample chamber temperature (automatically or manually)
- Continuous flow of gas into and out of the sample chamber
- Embedded vacuum pump (optional) and external vacuum port
- Dual gas supply ports (optional) - Rotameter and high accuracy pressure  regulator
- Special design of sample holders to handle moisture/air sensitive samples
- High accuracy and sensitivity due low dead volume, precision pressure transducer, and 24-bit data acquisition
- Save operation (heating and cooling system utilizes 12VDC, triple over-temperature protection)
- Auto (PC software) and Manual (front panel controls) modes of operation
​ - Cost still below prices of other competitors gas (helium) pycnometers

Applications:

• True volume (density) measurements at various temperatures
• Determination of volume changes in temperature-driven phase changes
• Sample stability within the temperature range (evolution of gas)
• Studies of volume changes at different pressures and temperatures (sample compressibility, hysteresis)
