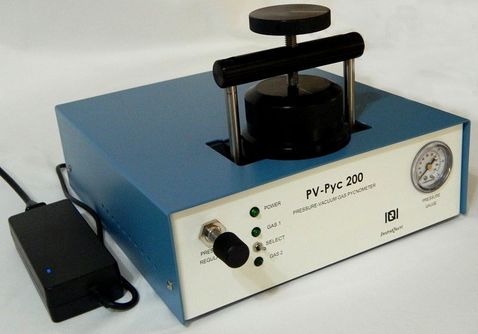

PV-PYC 200 - Pressure/Vacuum Pycnometer 200

The unique design of dual technique PV-Pyc 200™ pycnometer ​can be  used as a gas (Helium) pycnometer utilizing gas expansion method or as a true vacuum pycnometer when only ambient air is involved but no mercury or glassware is used as in a classical air pycnometer. The introduced symmetrical concept of true density measurements by using pressurized and vacuum conditions relative to atmospheric pressure can provide additional characterization of solid and semi-solid samples. The pycnometer is optimized for speed and larger size samples, up to 200 cc. It is fully automated and controlled via PC software and any computer with Windows OS can be used. The pycnometer is powered by any regulated 12 V DC source (6-12 Watts needed) and can be used in lab or field applications.

Main Features and Specifications:

High accuracy: < +-0.05 % and resolution: < 0.0001 cc
Large sample chamber: 65 mm diameter x 76 mm height
High accuracy absolute pressure transducer (0.08 %, 0.05 % or 0.03 % optional)
Large range of volumes, from over 200 to 1 cc
Non-elutriating sample holders for fine powders
Porosity and density kit (optional)
Convenience kit (disposable liners with forming tool)  for hard to clean samples (optional)
Built-in precision pressure regulator and vacuum pump
24-bit data acquisition
Powered by any regulated 12 V DC (requires 6-12 W)
Can operate as regular gas expansion or air (vacuum) pycnometer
Fully automated and controlled via provided PC software (any 32 or 64 bits Windows based OS)
Optimized for speed (QC and R&D)
True density and porosity by pressure and by vacuum

PV-Pyc 200™ - Pressure, Vacuum Pycnometer, 200 cc, Lab & Field   (PDF.file)
