QICPIC/L Series

The universal shapefinder for particle characterisation ranging from below 1 µm to 34,000 µm

Applying components of highest performance our modular particle size and shape analyser QICPIC develops the full power of dynamic image analysis. High speed image analysis using a pulsed light source with illumination times in the nanosecond range the particles are optically frozen while a high-resolution, high-speed camera captures the razor-sharp particle projections with a frequency of up to 500 frames per second. With powerful algorithms QICPIC is evaluating millions of particles in shortest time and guarantees outstanding statistically relevant results. Numerous implementations in pharmaceutical and chemical industry, powder metallurgy, additive manufacturing, food and beverage technology or soil science just denote the array of applications in industry and research.

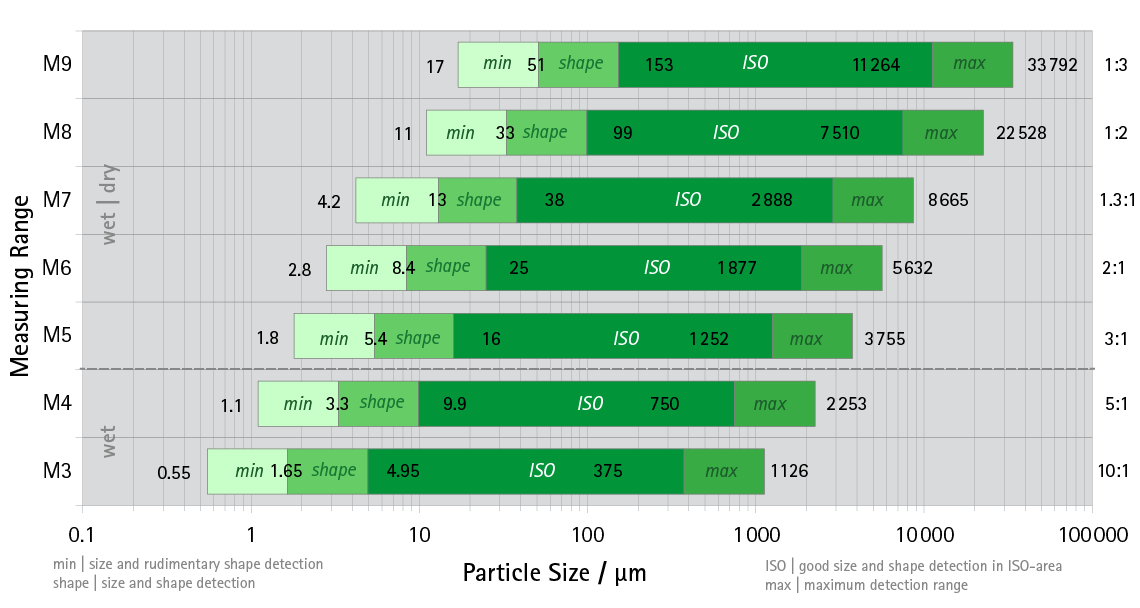

QICPIC | Measuring ranges M3 to M9 from 0.55 µm to 34,000 µm with maximum resolution

Configurations

• Reliable and fast determination of particle size and particle shape as well as fibre characterisation
• Wide measuring range from < 1 µm to 34 mm
• Fully compliant with image analyses standard ISO 13322-1/2
• Flexible adaptation to a wide range of applications by modular system design with a great selection of dispersing and dosing units for dry and wet applications
• Powerful evaluation modes | Meaningful results
• Adaptable, high resolution size and shape distributions
• High confidence level by fastest image acquisition allowing for a high number of particles
